RRR ENVIRO SYSTEMS | CHENNAI
DM Plant Manufacturer in Chennai
Industrial Demineralization (DM) Plants designed to produce low-mineral-content water for industrial processes, boilers and other applications requiring controlled water quality.
We undertake DM plant design, supply, installation and commissioning enquiries, existing plant revamping, resin replacement and service requirements based on water analysis and the required treated water quality.
WhatsApp for Quotation Call UsIndustrial DM Water Treatment Solutions

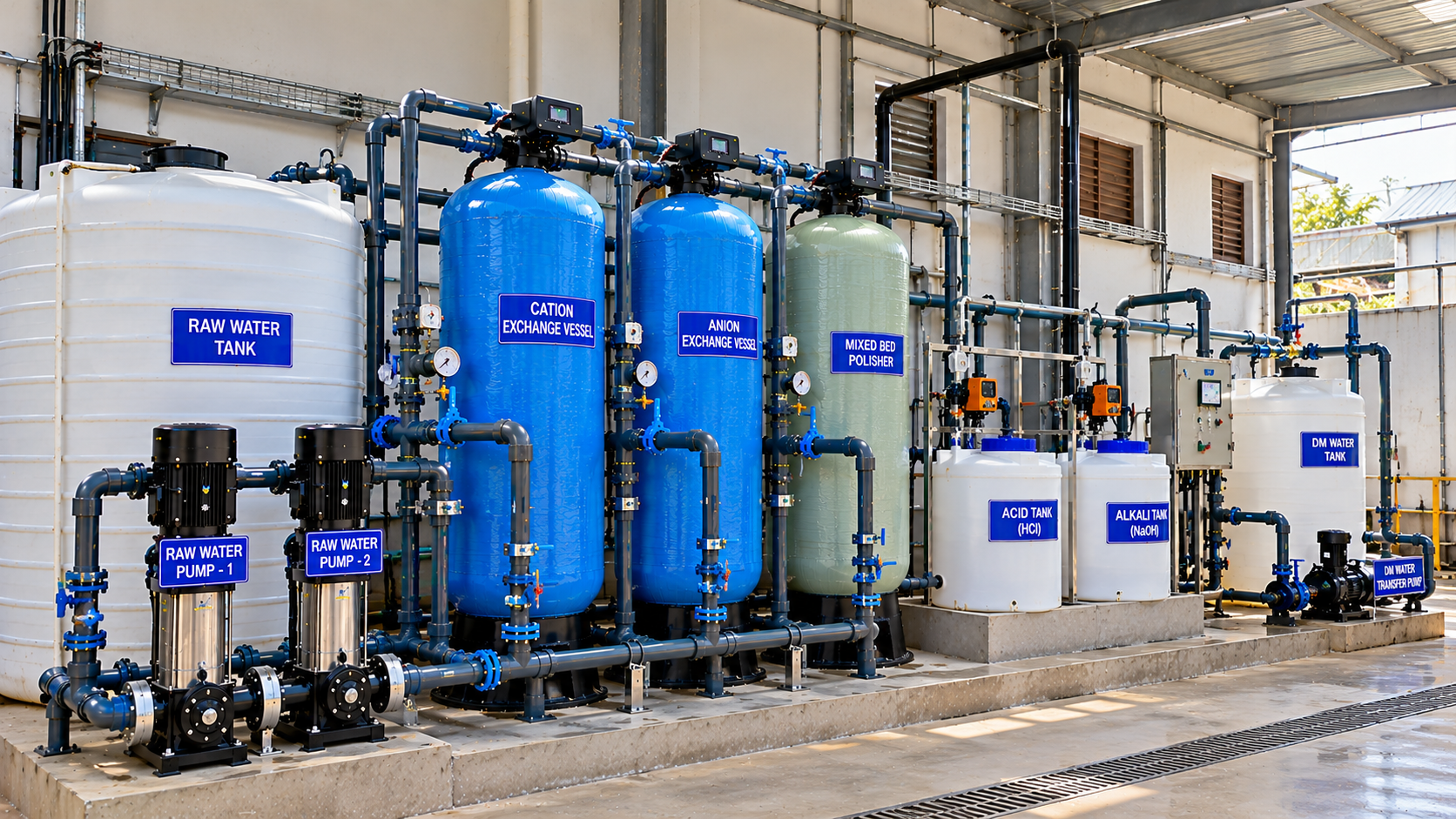

A Demineralization Plant uses ion-exchange technology to remove dissolved ionic constituents from water. The process configuration depends on feed-water quality, required flow, regeneration method and the final water-quality specification.
Cation Exchange Vessel
The cation resin exchanges positively charged ions such as calcium, magnesium and sodium with hydrogen ions in a typical H⁺-form DM process.
Anion Exchange Vessel
The anion resin removes negatively charged ions in a typical OH⁻-form process. It is commonly used after the cation stage to reduce dissolved ionic content.
Mixed Bed Polisher
A mixed bed containing cation and anion resins can be used as a polishing stage where a higher level of demineralization is required.
DM Water Storage and Transfer
Suitable storage tanks, transfer pumps, piping and monitoring instruments can be included according to the project scope.
Typical DM Plant Process
A typical ion-exchange DM system may follow the process below. Final stages are selected according to the feed-water analysis and required product-water quality.
01. Feed Water Assessment
Review of raw water TDS, hardness, alkalinity, conductivity, silica and other relevant parameters.
02. Pretreatment
Suitable filtration and, where required, softening or other pretreatment to protect the downstream ion-exchange system.
03. Cation Exchange
Removal of cations through an appropriate cation-resin stage.
04. Degassing, If Required
A degasser may be considered in suitable configurations to reduce carbon dioxide loading before the anion stage.
05. Anion Exchange
Removal of anions through a suitable anion-resin stage.
06. Mixed Bed Polishing
An optional polishing stage can be provided when the required outlet conductivity or ionic purity calls for it.
DM Plant Applications
- Boiler feed water treatment, subject to boiler requirements
- Manufacturing and industrial process water
- Pharmaceutical and laboratory utility-water applications, subject to applicable specifications
- Power and utility systems
- Electronics and other applications requiring reduced ionic content
- Textile, engineering and general industrial facilities
- DM water production after suitable RO pretreatment, where applicable
- Existing DM plant resin replacement and performance improvement
Application suitability and the required water quality should be confirmed before finalizing the plant design.
DM Plant Capacity and Customization
DM plants can be engineered for different flow requirements. Vessel size, resin quantity, service flow, regeneration frequency and storage requirements depend on the feed-water quality and the required output.
Small Industrial DM Plants
For laboratories, small manufacturing units and utility-water applications where the specified quality can be achieved by the selected design.
Medium-Capacity DM Plants
For commercial and industrial facilities with defined operating hours and daily water demand.
Industrial DM Systems
Designed around process demand, feed-water analysis, resin capacity, regeneration requirements and operating conditions.
RO + DM Systems
RO pretreatment followed by ion exchange may be considered to reduce ionic loading on the DM system where technically suitable.
Equipment Included in a DM Plant Package
Depending on the approved technical scope, a DM plant package may include:
- Cation exchange vessel and cation resin
- Anion exchange vessel and anion resin
- Mixed bed vessel and mixed bed resin, if required
- Regeneration tanks and chemical dosing arrangements, as specified
- Suitable acid and alkali handling provisions according to the approved safety design
- Feed-water and treated-water transfer pumps, where included
- Interconnecting piping, valves and fittings
- Pressure gauges and conductivity monitoring instruments
- Electrical panel and automation as specified
- DM water storage tank and distribution arrangements, where included
DM Plant Performance and Water Quality
DM water quality is evaluated using parameters such as conductivity, silica and other project-specific limits. The achievable output depends on feed-water composition, resin condition, plant configuration, regeneration and operating practices.
- Feed-water analysis before design finalization
- Selection of suitable cation and anion resin grades
- Calculation of resin working capacity and regeneration frequency
- Outlet conductivity monitoring
- Mixed bed polishing where required
- Periodic resin and plant performance assessment
Any guaranteed outlet quality should be stated only after the design basis and acceptance criteria are agreed upon.
DM Plant Manufacturer and Supplier in Chennai
RRR ENVIRO SYSTEMS accepts DM plant enquiries from Chennai and nearby industrial areas. Installation, commissioning and service support are subject to the project location, scope and scheduling.
Areas served include:
- Velachery, Adyar, Guindy and Pallikaranai
- Perungudi, Thoraipakkam and Sholinganallur
- Navalur, Siruseri and Kelambakkam
- Tambaram, Selaiyur and Medavakkam
- Perungalathur, Vandalur and Guduvanchery
- Ambattur, Padi and Madhavaram
- Manali and other industrial areas in North Chennai
- Sriperumbudur and Oragadam
- Maraimalai Nagar, Singaperumal Koil and Chengalpattu
For locations outside Chennai, share your site location and scope so that service feasibility can be checked.
DM Plant Service, Resin Replacement and Revamping
DM Plant Maintenance
Inspection of operating performance, valves, piping, regeneration arrangements and outlet-water quality.
Resin Replacement
Assessment and replacement of exhausted or unsuitable ion-exchange resin based on plant performance and operating history.
Conductivity Troubleshooting
Investigation of high outlet conductivity, regeneration issues, resin condition and possible process-related causes.
Existing Plant Revamping
Review of vessel condition, resin quantity, regeneration system, instrumentation and treatment sequence to identify possible improvements.
Frequently Asked Questions
1. What is a DM plant?
A Demineralization Plant uses ion-exchange resins to reduce dissolved ionic constituents in water.
2. What is the difference between RO and DM?
RO uses a semipermeable membrane to reduce dissolved substances, while a conventional DM plant uses cation and anion exchange resins. The suitable technology depends on feed-water quality and the required output.
3. Is a mixed bed compulsory?
No. A mixed bed is generally an optional polishing stage when the specified water quality requires it.
4. How do I select the DM plant capacity?
Share the required flow, operating hours, raw water analysis and target outlet-water quality. These details help determine vessel sizing and resin requirements.
5. Can DM resin be replaced in an existing plant?
Yes, subject to inspection of the vessels, resin condition, internal distribution arrangements and regeneration system.
6. What information is needed for a quotation?
Please share the required capacity, raw water report, intended application, required conductivity or other quality limits, site location and any existing plant details.
Request a DM Plant Quotation
RRR ENVIRO SYSTEMS
Industrial DM Plants | Cation & Anion Exchange | Mixed Bed Polishing | Resin Replacement | Revamping & Service
Phone: +91 97100 35249
Phone: +91 99623 95875
Email: rrrenviro@gmail.com
Address: No. 7, 11th Cross Street, Dhandeeshwaram, Velachery, Chennai – 600042, Tamil Nadu, India.
Send DM Enquiry on WhatsApp
